Giới thiệu Bộ mô-đun cảm biến thẻ ID MFRC-522 RC522 RFID IC

Specifications:
Color: Blue + White IC card
Material: Plastic + electronic components
IC sensor card: Length: 8.3cm width: 5.2cm thickness: 0.1cm
Sensor module: Length: 5.7 width: 3.8 height: 0.5cm
S50 card: Length: 6cm width: 3.2cm height: 0.3
Operating current: 13-26mA / DC 3.3V
Idle current: 10-13mA / DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating frequency: 13.56MHz
Supported card types: Mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
Product size: 40mm x 60mm
Environmental operating temperature: -20-80 degrees Celsius
Environmental storage temperature: -40-85 degrees Celsius
Environmental relative humidity: 5% -95%
Data transfer rate: Up to 10Mbit / s

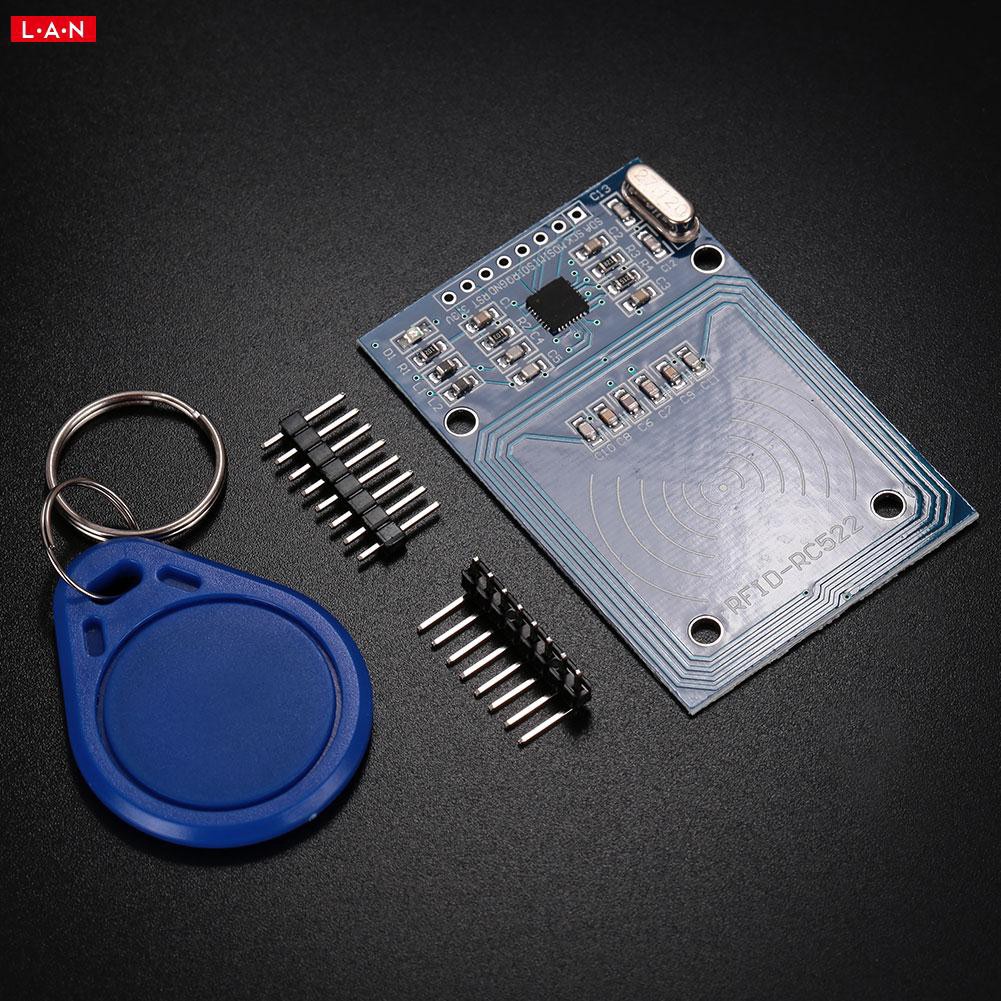

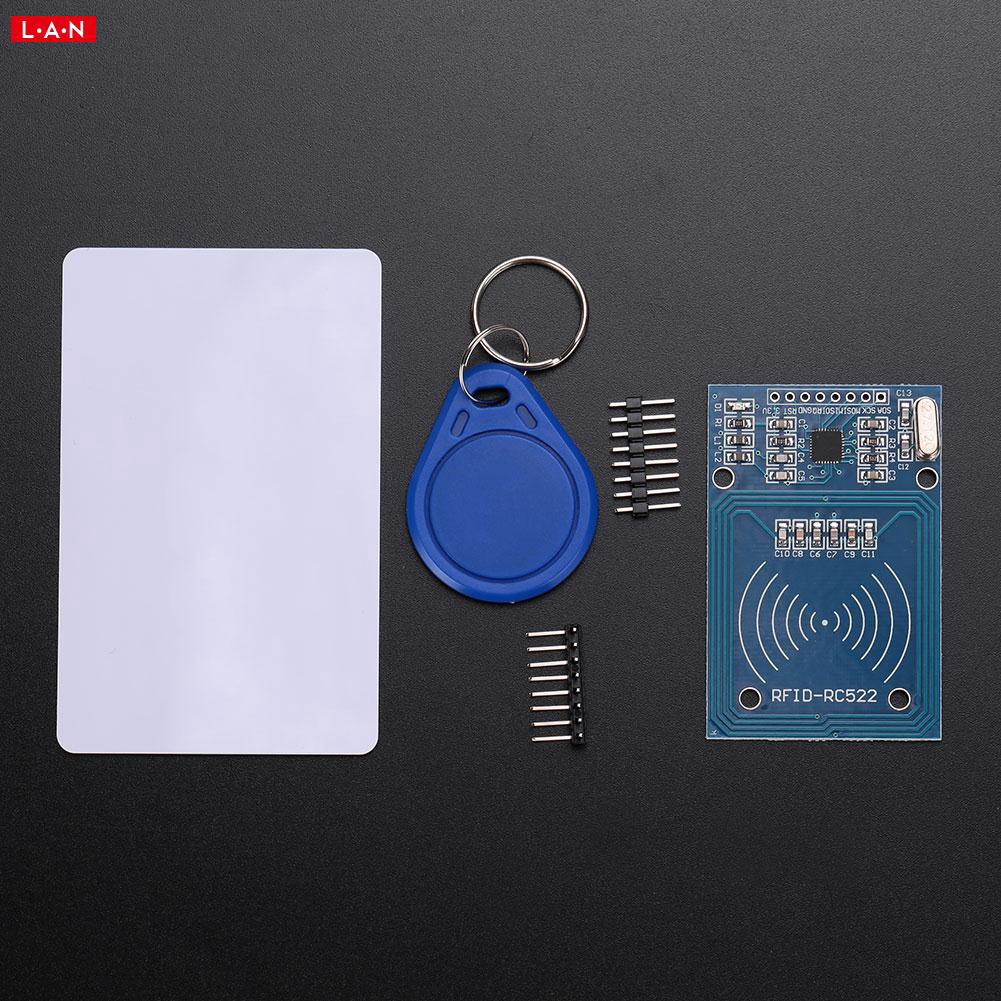

Danh sách đóng gói: 1 x Mô-đun cảm biến thẻ IC RF RF-522 RC522 có thẻ và móc khóa 1 x Pin cắm thẳng 1 x Pin uốn cong
