Giới thiệu [Mã 254ELSALE giảm 7% đơn 300K] Mainboard máy tính HUANANZHI X99 8M-T

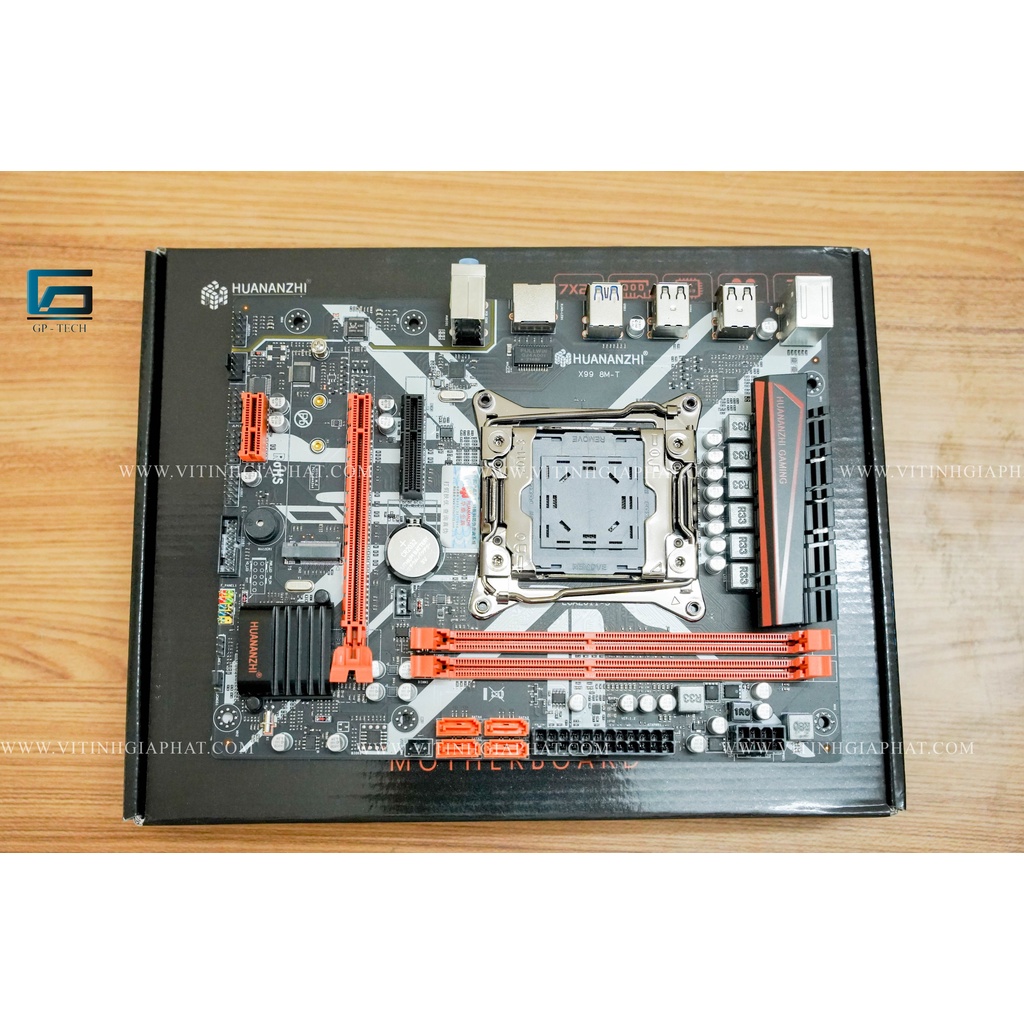

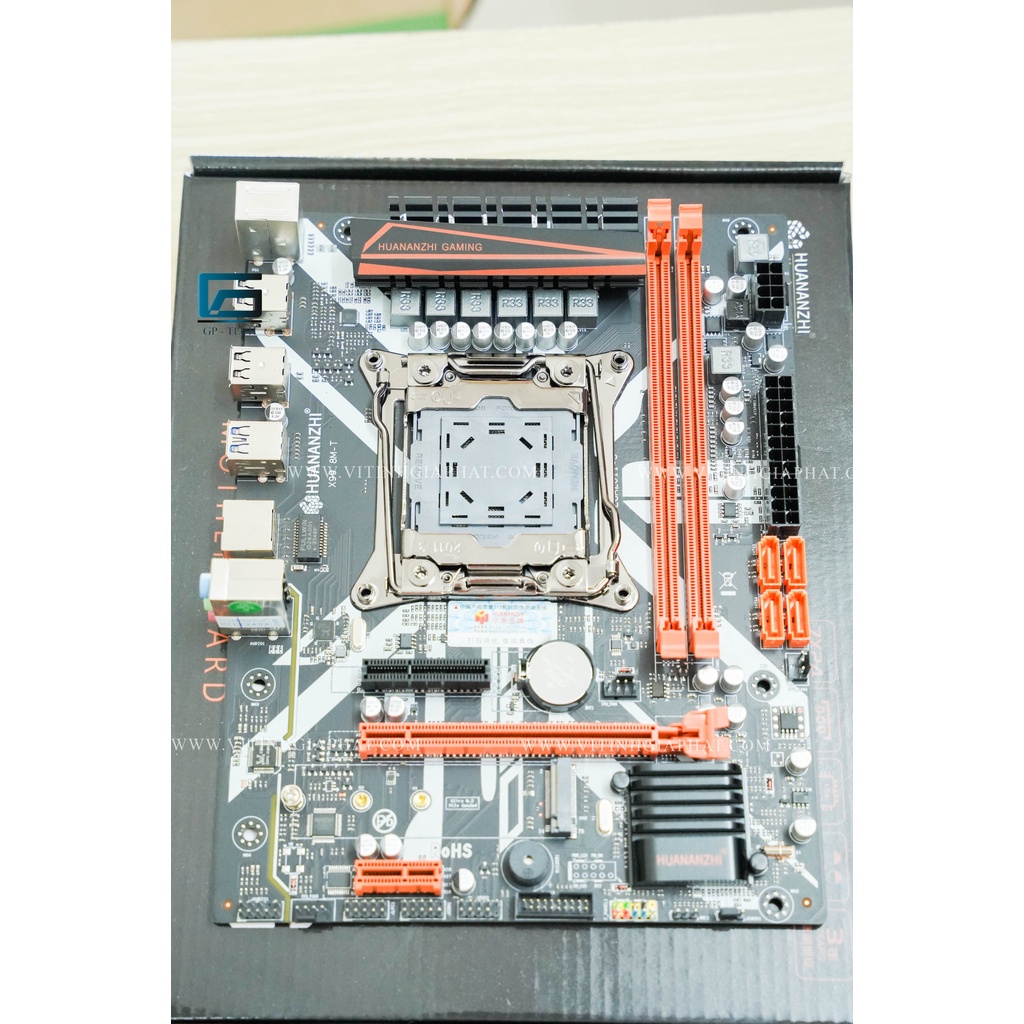

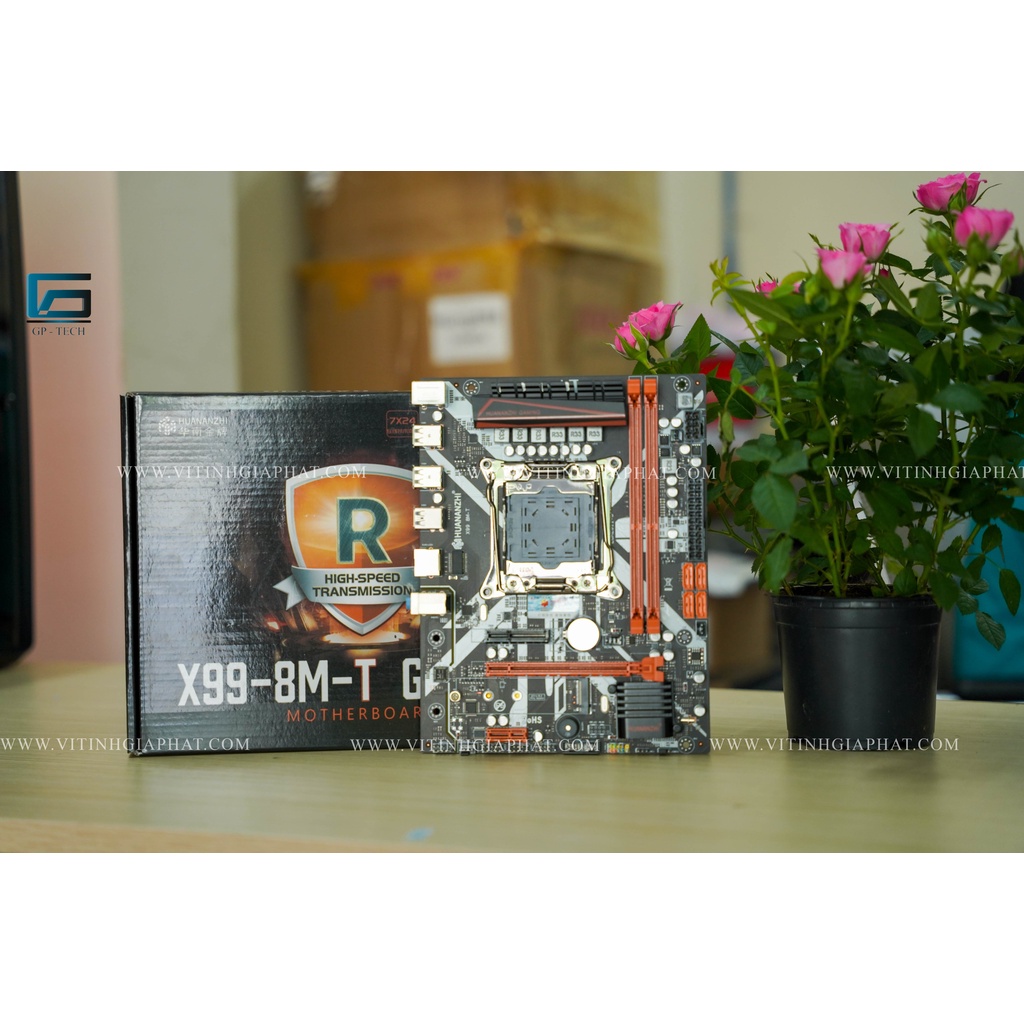

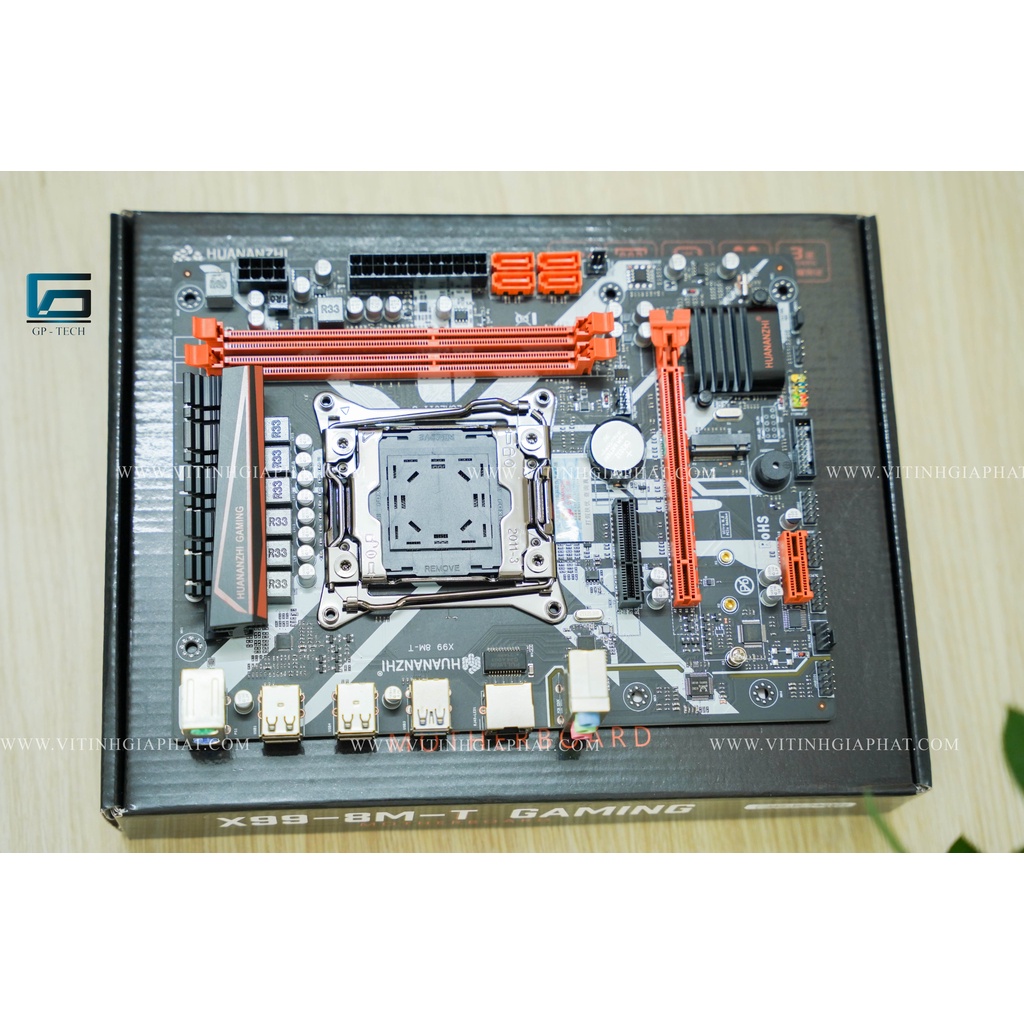

Mainboard HUANANZHI X99-8M-T
Platform Intel® B85, LGA2011-3
Memory 2 x DIMM, Max. 2 x 32GB, DDR3 1866/1600/1333 MHz,


Supports ECC or non-ECC Memory, Dual Channel Memory Architecture

* CPU Support for DDR3: E5-2696v3 / 2678v3 / 2676v3 / 2673v3 / 2669v3 / 2649v3 / 2629v3

Graphic No display output port


Supports NVIDIA® and AMD® Graphics Cards

Audio Realtek® ALC662 5.1-Channel, High Definition Audio CODEC
LAN Realtek® RTL8111H, 1 x 10/100/1000 Mbit LAN Controller(s)
Expansion Slots 1 x PCIe 3.0 x16


1 x PCIe 3.0 x4

1 x PCIe 3.0 x1

Storage 4 x SATA3.0 (6GB/s) port(s)


1 x M.2 Socket 3, NVMe

Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s)


1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)

1 x CPU Fan connector(s) (1 x 4-pin) (1 x 4-pin)

1 x Chassis Fan connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

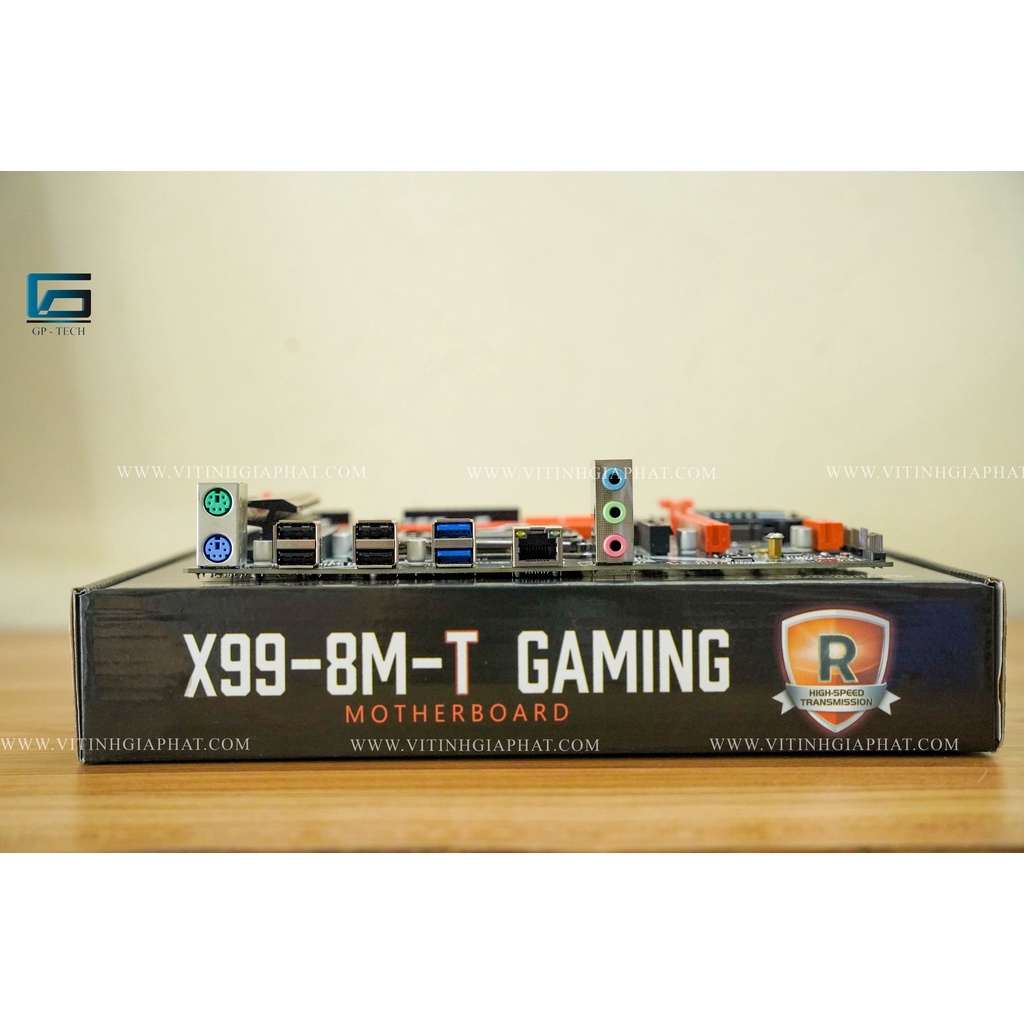

Back I/O Ports 1 x PS/2 Keyboard and Mouse port


1 x LAN (RJ45) port(s)

4 x USB 2.0

2 x USB 3.0

3 x Audio jack(s)

Form Factor Micro ATX Form Factor; 23.7cm x 18cm
Packing list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual
