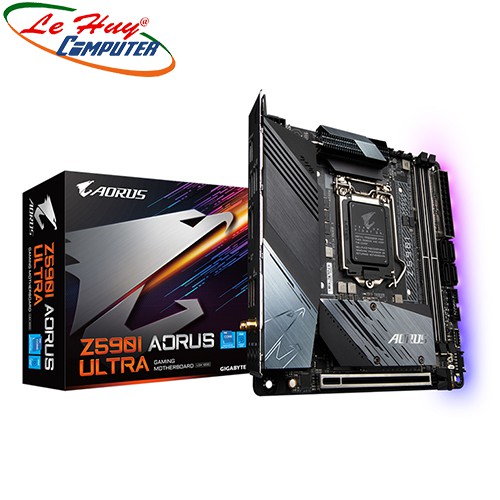

Giới thiệu Mainboard GIGABYTE Z590I AORUS ULTRA

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590I AORUS ULTRA

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

2 x DDR4 DIMM, tối đa 64GB
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 heade
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header

Cổng kết nối (Back Panel)

1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks

LAN / Wireless

LAN: Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel® Wi-Fi 6 AX201:
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ

Mini-ITX Form Factor; 17.0cm x 17.0cm
