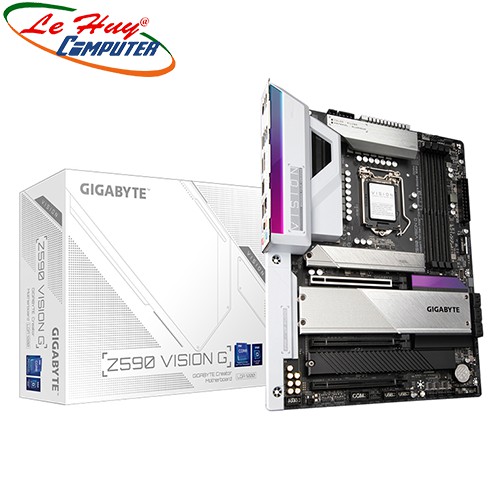

Giới thiệu Mainboard GIGABYTE Z590 VISION G

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

Z590 VISION G

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4 x DDR4 DIMM, tối đa 128GB
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
1 x noise detection header
Cổng kết nối (Back Panel)

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen2 Type-A ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
6 x audio jacks
LAN / Wireless

LAN:
Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Kích cỡ

ATX Form Factor; 30.5cm x 24.4cm
