Giới thiệu Mainboard ASUS TUF GAMING Z590-PLUS

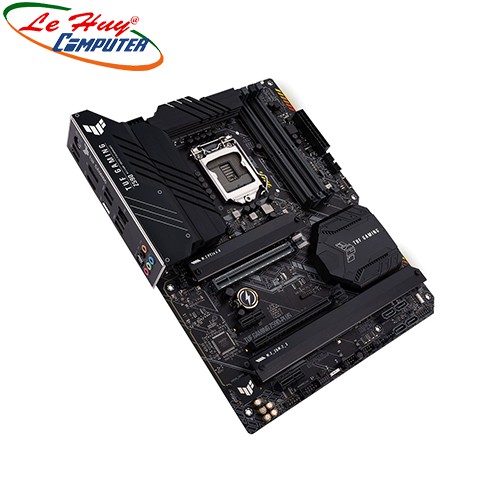

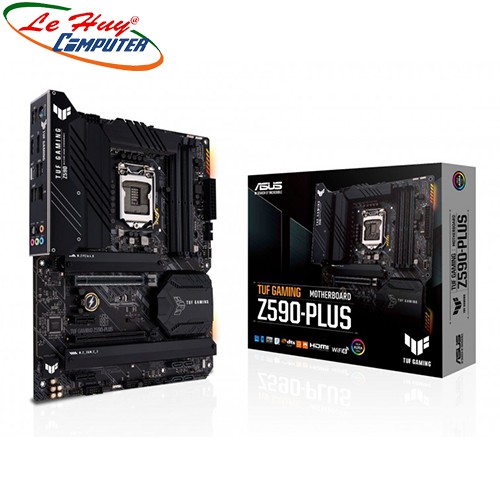

Mainboard ASUS TUF GAMING Z590-PLUS
Loại sản phẩm Mainboard - Bo mạch chủ
CPU hỗ trợ
Tích hợp Intel® Socket 1200 cho Intel® Core™ thế hệ 10 và 11

Chipset Intel® Z590 Chipset
RAM hỗ trợ
4 x DIMM, Max. 128GB, DDR4 5133(OC) Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II


* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Hình ảnh
1 x DisplayPort 1.4**
1 x HDMITM 2.0***


* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Khe cắm mở rộng
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots


* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Ổ cứng hỗ trợ
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s ports


* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
**** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.

LAN 1 x Intel® I225-V 2.5Gb Ethernet
TUF LANGuard

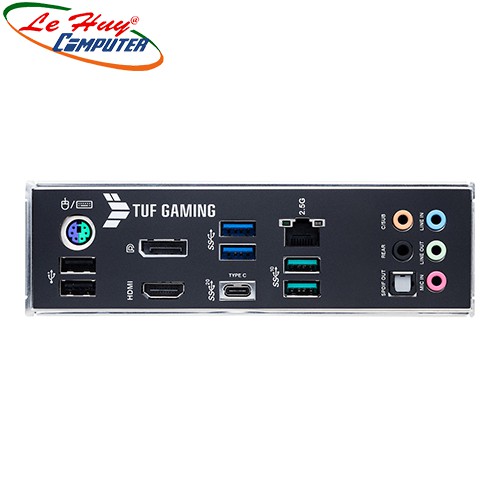

USB Rear USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additiona
