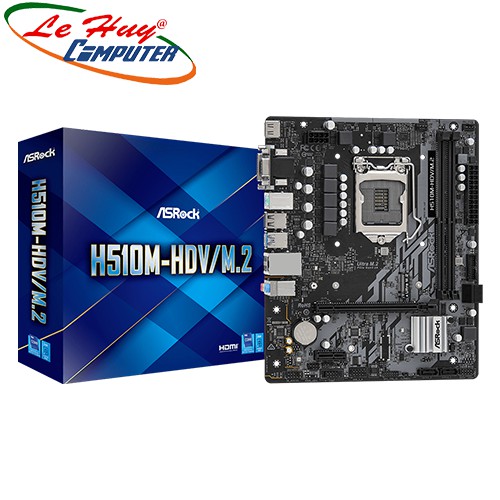

Giới thiệu Mainboard ASROCK H510MHDV/M.2

Socket LGA1200
Chipset Intel® H510
CPU (hỗ trợ tối đa) Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
OS hỗ trợ Microsoft® Windows® 10 64-bit
Bộ Nhớ
Bộ nhớ RAM tối đa 64 GB
Số khe cắm 2
Kênh bộ nhớ Dual
RAM Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Nguồn
Kích thước nguồn hỗ trợ
Micro ATX Form Factor
22.6 cm x 18.8 cm
Solid Capacitor design
Đồ Họa và Âm Thanh
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
Kết Nối Mạng
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Cổng Kết Nối
PS/2 keyboard/ mouse combo port
- 1 x PS/2 Keyboard Port
- 1 x PS/2 Mouse Port
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 2.0 4 x USB 2.0 Ports (Supports ESD Protection)
USB 3.2 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Cổng Audio HD Audio Jacks: Line in / Front Speaker / Microphone
VGA 1 x D-Sub
DVI-D có
HDMI 1 x HDMI 2.0
Kết Nối I/O Bên Trong
SATA III 6Gb/s 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
M.2 SLOT 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
PCI-EX1 1 x PCI Express 3.0 x1 Slot
PCI-EX16
11th Gen Intel® Core™ Processors
- 1 x PCI Express 4.0 x16 Slot*
10th Gen Intel® Core™ Processors
- 1 x PCI Express 3.0 x16 Slot*
