Giới thiệu Main Giga H81 DDR3 socket 1150 - Bo mạch chủ Gigabyte GA-H81M-DS2

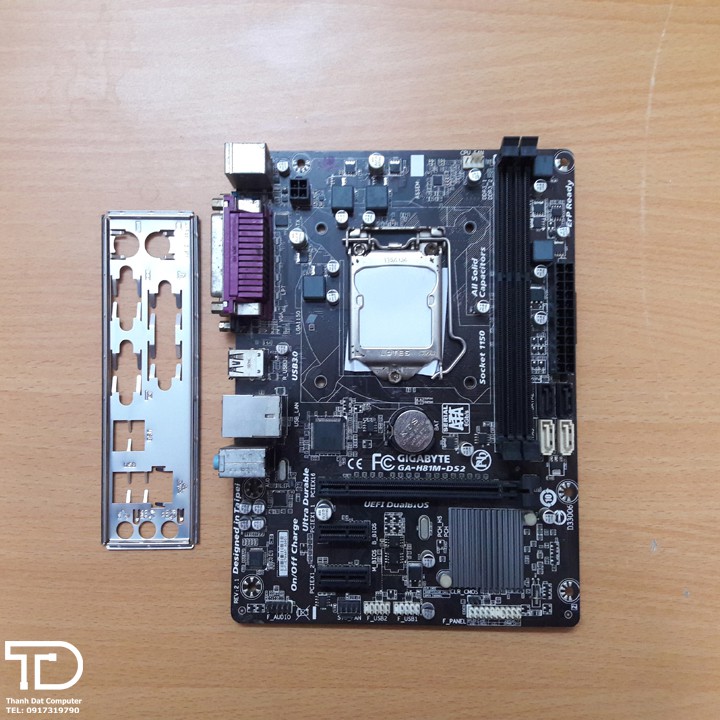

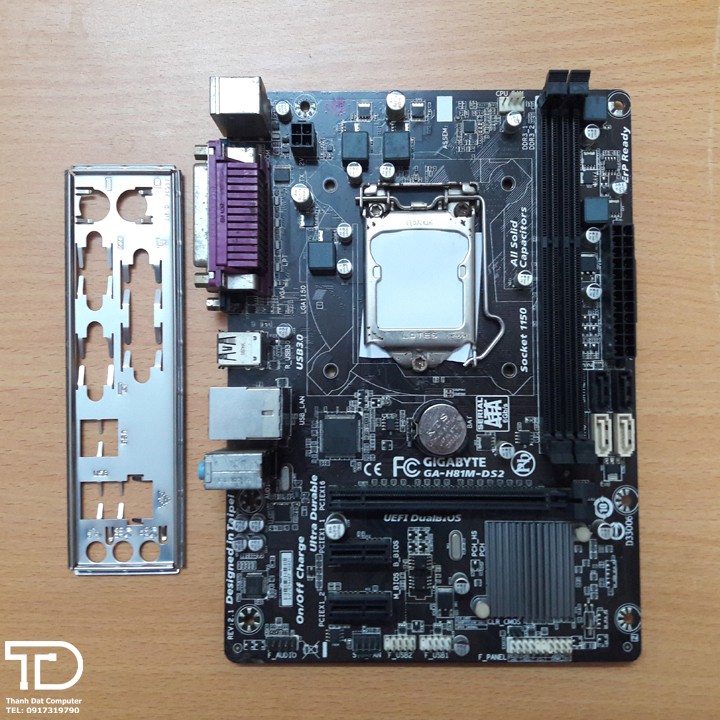

Main Giga H81 DDR3 socket 1150

Mô tả sản phẩm:
* Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/IntelPentium processors/ Intel Celeron processors in the LGA1150 packageL3 cache varies with CPU (Please refer "CPU Support List" for more information.)
* Intel H81 Express Chipset
* DDR3 1600/1333 MHz, 2 x 1.5V supporting up to 16GB

Thông số kỹ thuật:


Mô tả chi tiết

Hãng sản xuất

GIGABYTE

Chủng loại

H81M-DS2

CPU hỗ trợ

Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/IntelPentium processors/ Intel Celeron processors in the LGA1150 packageL3 cache varies with CPU (Please refer "CPU Support List" for more information.)

Chipset

Intel H81 Express Chipset

Bộ nhớ trong

DDR3 1600/1333 MHz, 2 x 1.5V supporting up to 16GB

VGA onboard

1 x D-Sub port, supporting a maximum resolution of 1920x1200

Maximum shared memory of 1 GB

Card mạng

Realtek GbE LAN chip (10/100/1000 Mbit)

Âm thanh

Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

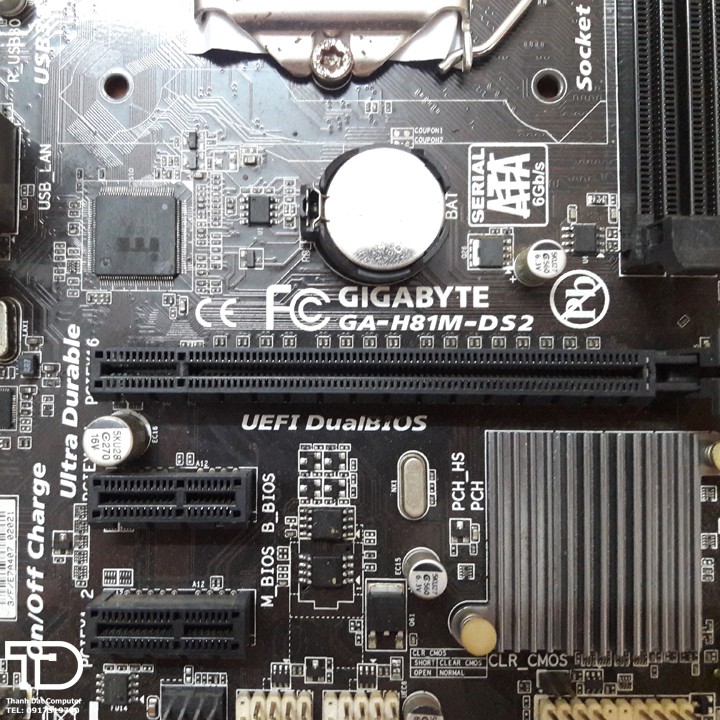

Khe mở rộng

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)

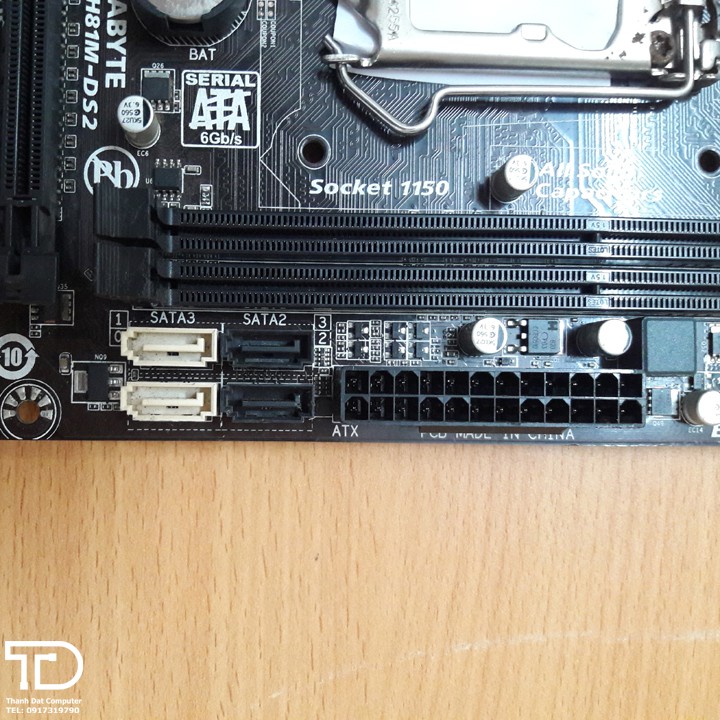

Chuẩn lưu trữ

2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices

2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices

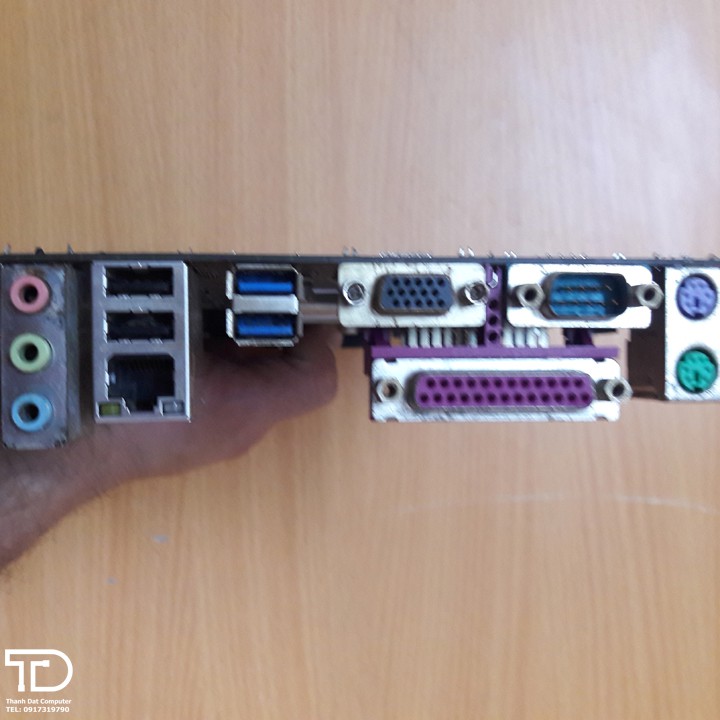

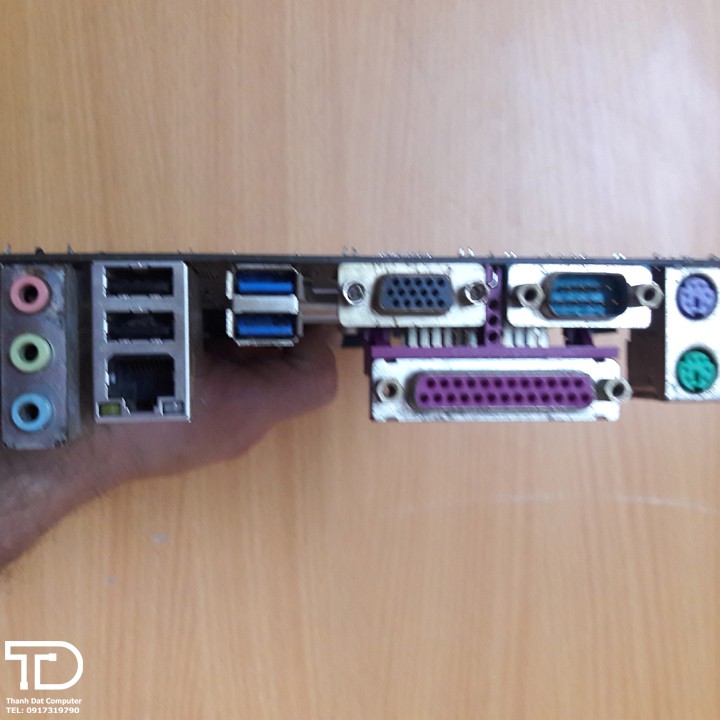

Cổng giao tiếp trước và sau

1 x PS/2 mouse port/1 x PS/2 Keyboard port/1 x parallel port/1 x serial port/1 x D-Sub port/2 x USB 3.0/2.0 ports/2 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks (Line In, Line Out, Mic In)

Công nghệ tích hợp

Q-Flash, Xpress Install, APP Center, @BIOS, EasyTune, EZ Setup, USB Blocker, ON/OFF Charge

Kích thước

Micro ATX Form Factor; 22.6cm x 17cm
