Giới thiệu Mạch nguồn hạ áp từ 12V đến 24V thành 5V cường độ 3A

Chào mừng Các bạn ghé thăm Shop mình!
Đặc điểm sản phẩm:

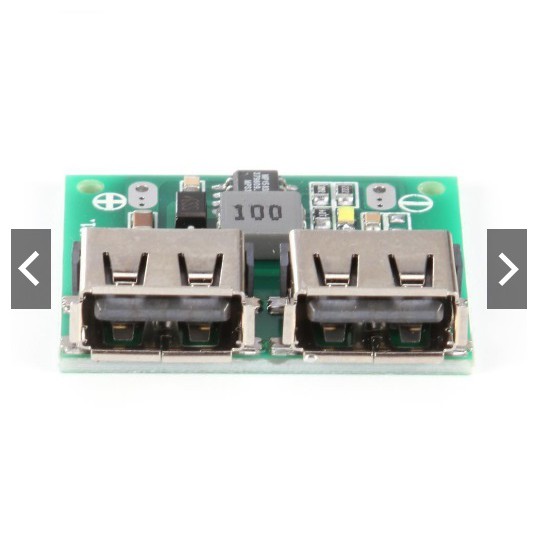

Dual USB Output 9V 12V 24V to 5V 3A DC-DC Step Down Charger Power Module Buck Voltage 3A Car Charging Regulator
Specification:
Compatible mobile models: Android, for iPhone, for Huawei, for Xiaomi, for Nokia
Input voltage range: 6-24V
Output Voltage: 5.2V (Considering the loss of charging line, output is 5.3-5.4V, load is 5.1-5.2V)
Output current: 3A (stable output current is 2A without heat sink)

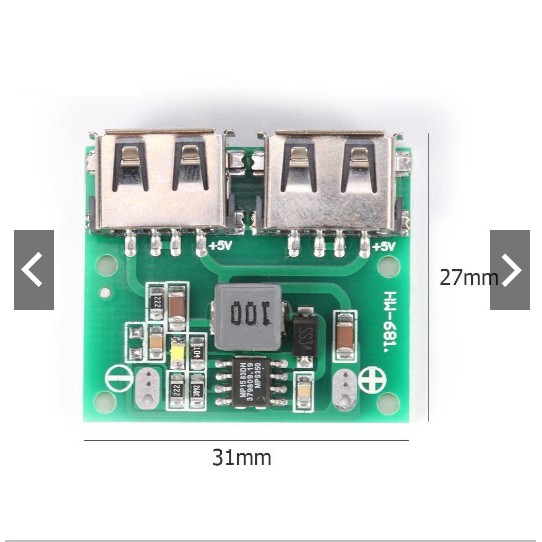

Size: 31*27*9mm/1.22*1.06*0.35''

Warm Tips:
1. The input voltage should not exceed 24V, otherwise the chip will be damaged.
2. Input positive and negative poles can not be reversed, otherwise the chip will be damaged.
3. Do not touch the resistance, capacitance and IC foot of the circuit board with your hands when working on power, otherwise it may cause sudden change of output voltage to damage the equipment.

Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.


Included:

1 x DC-DC Step Down Charger Power Module
'
