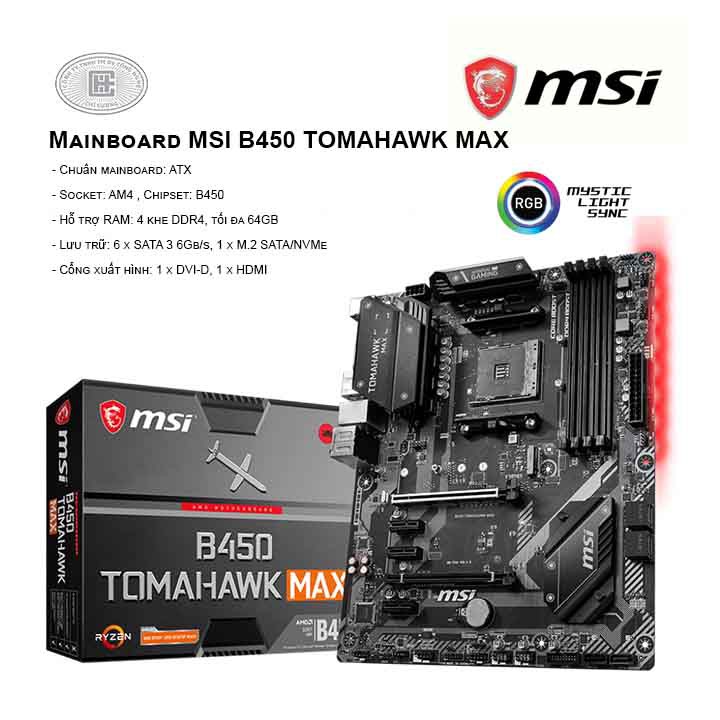

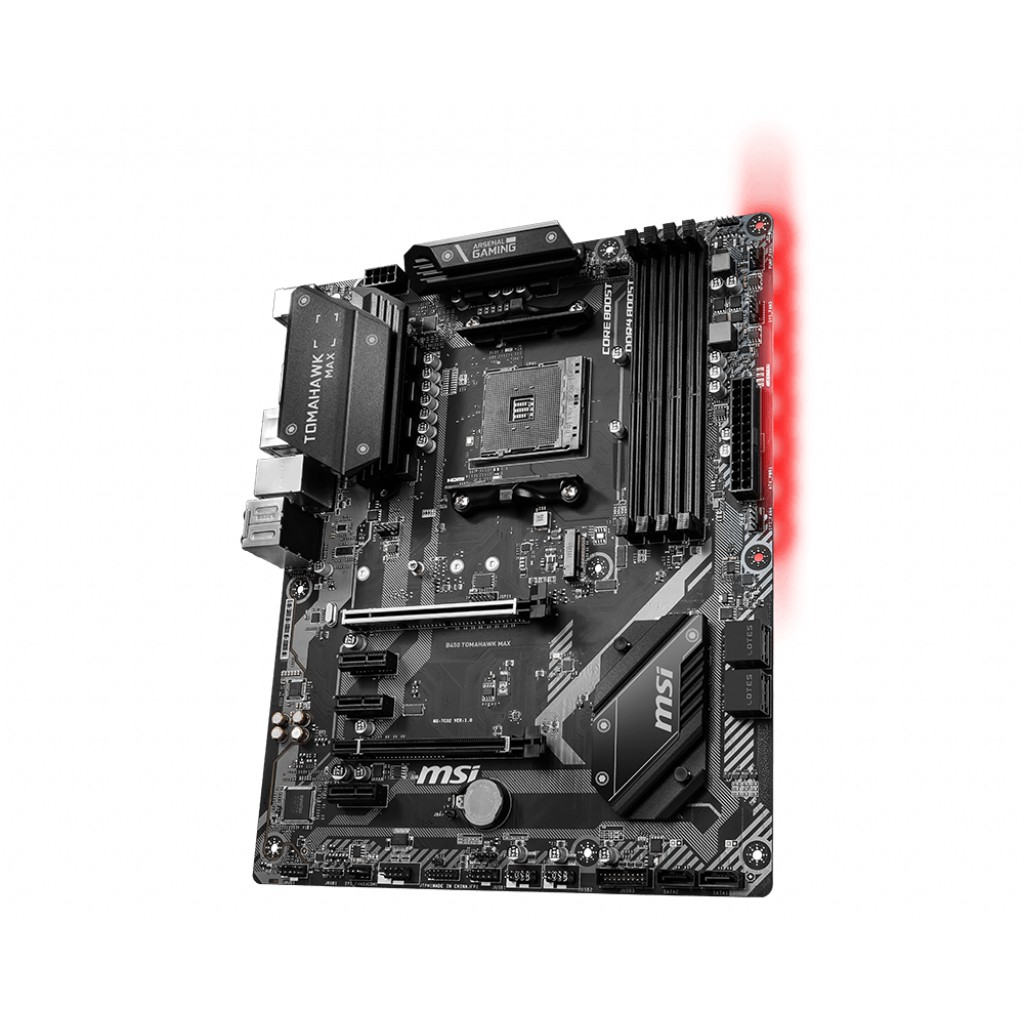

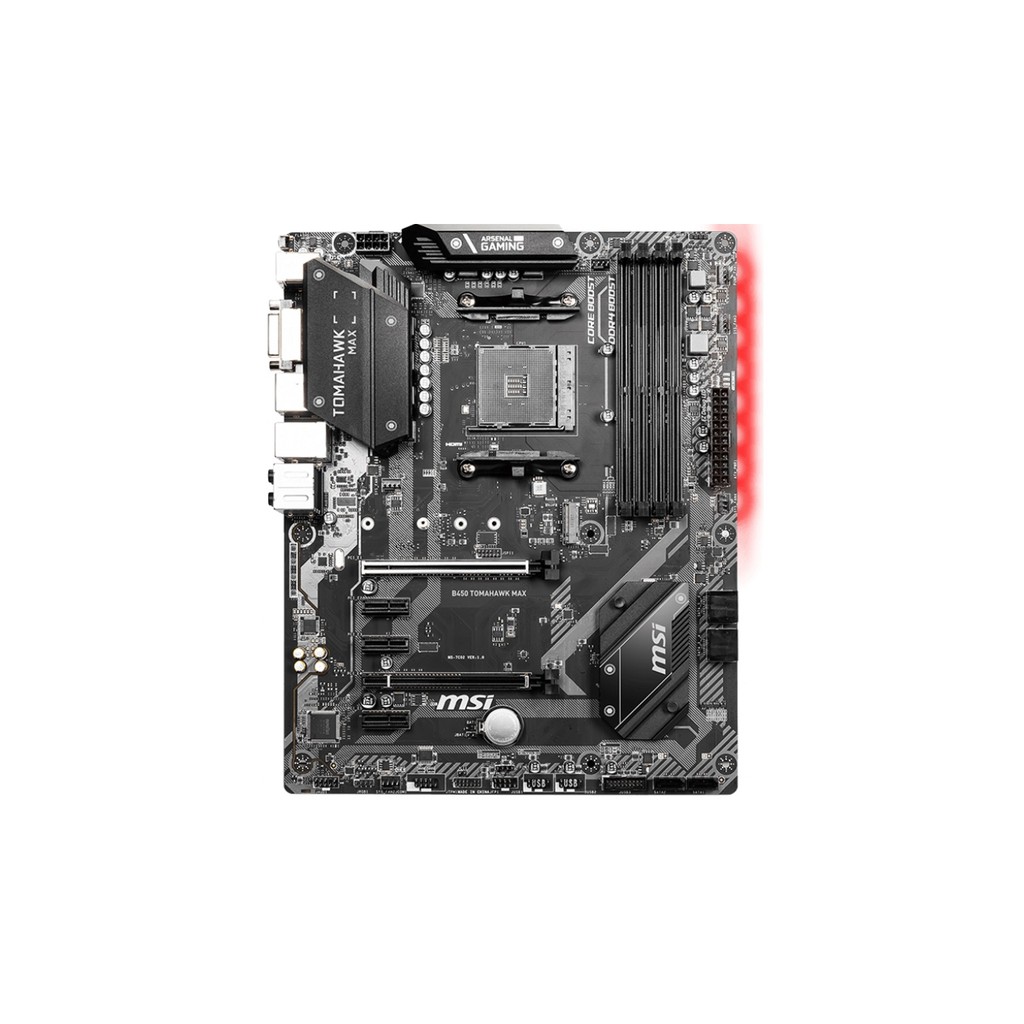

Giới thiệu Bo mạch chủ MSI B450 TOMAHAWK MAX AM4

Tất cả sản phẩm Msi do Mai hoàng phân phối đều được bảo hành tại trung tâm bảo hành trên toàn quốc
Tình Trạng:
New Full box
Bảo hành 36 tháng , Chính hãng

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
CHIPSET
AMD® B450 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed< >1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)13 x PCIe 2.0 x1 slots1PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot.
ONBOARD GRAPHICS
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1,2
Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors
Maximum shared memory of 2048 MB
MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® CPU
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
AMD® B450
4 x SATA 6Gb/s ports
AMD® B450
Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
USB
AMD® B450
1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial Port conn
