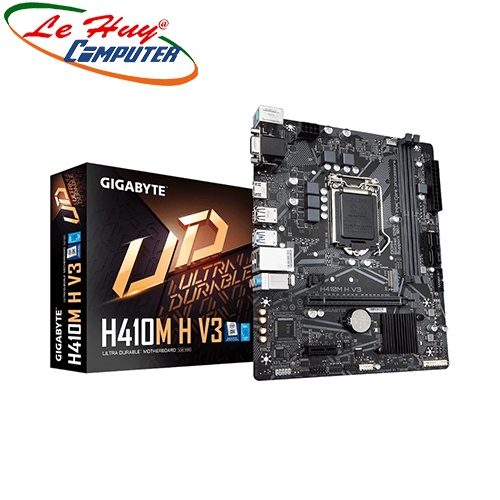

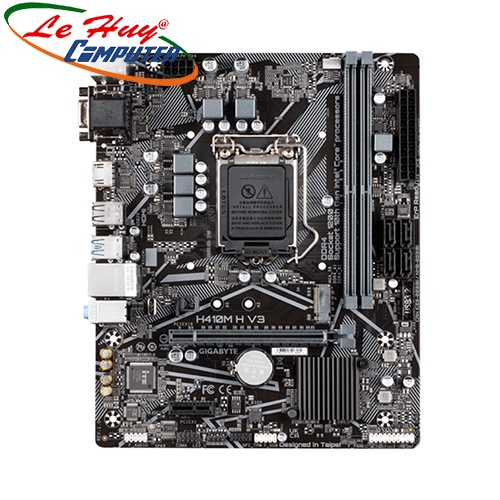

Giới thiệu Bo mạch chủ Mainboard Gigabyte H410M-H V3

Thông số kỹ thuật chi tiết Mainboard Gigabyte H410M-H V3 (Intel H510, Socket 1200, m-ATX, 2 khe Ram DDR4)
CPU hỗ trợ Intel® Socket 1200 10th Gen Intel® Core™, Pentium®Celeron® Processors
Supports Intel® 14 nm CPU
Chipset H510
Bộ nhớ trong 2x DDR4 memory slots, support up to 64GBIntel® Core™ i7/ i9Supports up to DDR4 2933/2666/2400/2133 MHzIntel® Core™ i5/i3/Pentium/Celeron processorsSupports up to DDR4 2666/2400/2133 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)
Hiển thị đồ họa 1x D-Sub port, supports a maximum resolution of 1920x1200@60 Hz1x HDMI port, supports a maximum resolution of 4096x2160 @30HzSupports for HDMI 1.4 version anh HDCP 2.3
Khe mở rộng 1x PCIe x16 slot (From CPU)1x PCIe x1 slot (From PCH)
Chuẩn lưu trữ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x 4/x2 SSD support4x SATA 6Gb/s ports
Mạng Gigabit Ethernet Chip (1Gbps/100Mbps)
Âm Thanh Realtek® Audio Codec2/4/5.1/7.1-Channel High Definition Audio

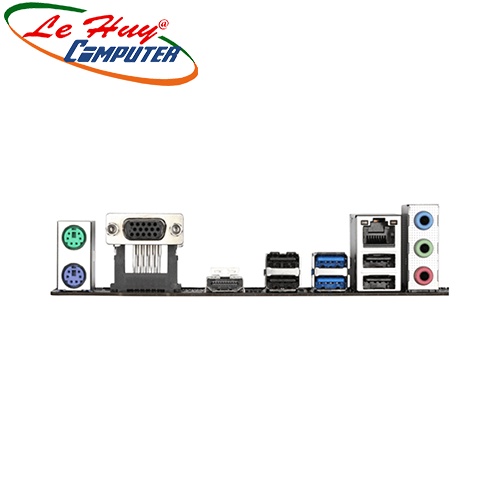

Kết nối ngoài 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)1x PS/2 keyboard port1x PS/2 mouse port1x D-Sub port1x HDMI port2x USB 3.2 Gen 1 ports4x USB 2.0/1.1 ports1x RJ-45 port3x audio jacks
Kết nối trong 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors1x CPU fan header1x system fan header1x RGB LED strip header1x Front panel header1x Front panel audio connector 1x USB 3.2 Gen 1 header 1x USB 2.0/1.1 header 1x Trusted Platform Module header1x Serial port header 1x Clear CMOS jumper
Kích thước mATX Form Factor
22.6 cm x 18.5 cm
Giá HBARX
