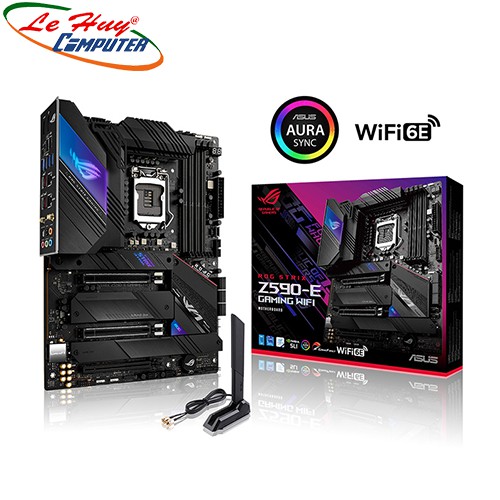

Giới thiệu Bo mạch chủ - Mainboard ASUS ROG STRIX Z590-E GAMING WIFI

Tên gọi

ASUS ROG STRIX Z590-E GAMING WIFI

CPU hỗ trợ

Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset / Socket

Intel® Z590 Chipset

Bộ nhớ (RAM)

Memory Channels:4xDDR4 (Dual channel)

Max Memory Size:128GB

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Công nghệ đa GPU

Supports NVIDIA 2-Way SLI® Technology

Khe cắm mở rộng

Intel® 11th &10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)*

- Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)

- Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)

Intel® Z590 Chipset

LAN / Wireless

2 x Intel® I225-V 2.5Gb Ethernet

Âm thanh

- SupremeFX Shielding Technology

- ALC4080 + Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Audio cover

Cổng kết nối (Internal)

1 x Thunderbolt 4 (onboard)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

1 x VRM heatsink Fan header

1 x W_PUMP+ header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Q Code

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt header

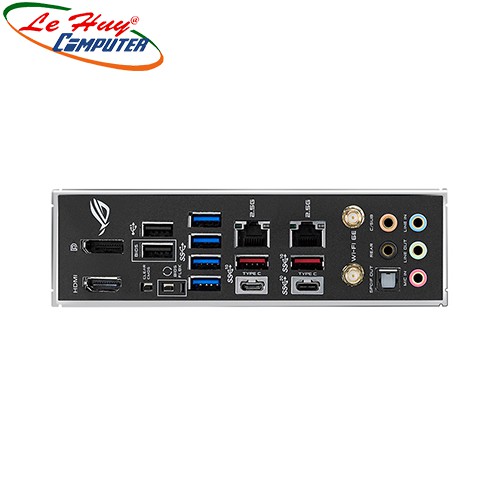

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® )

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Intel® Wi-Fi 6E

2 x Intel® I225-V 2.5Gb Ethernet

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Công nghệ độc quyền

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

-AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- 5-Way Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Fan Xpert 4

Turbo app

- EZ update

DAEMON Tools

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
