Giới thiệu Bo mạch chủ - Mainboard ASUS ROG STRIX Z590-A GAMING WIFI

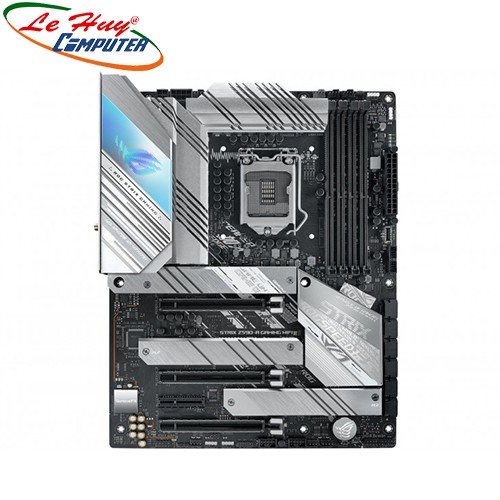

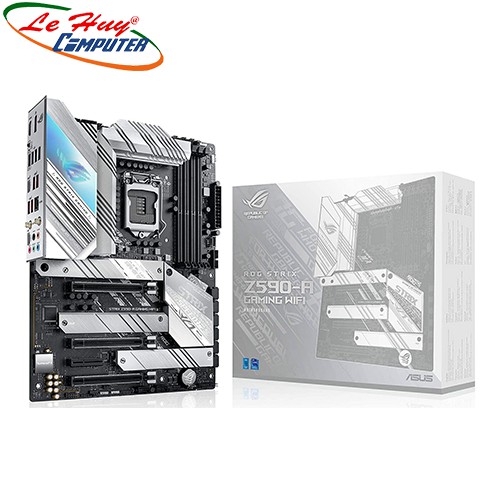

Mainboard ASUS ROG STRIX Z590-A GAMING WIFI
Loại sản phẩm Mainboard - Bo mạch chủ
CPU hỗ trợ
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel® Z590 Chipset
RAM hỗ trợ
4 x DIMM, Max. 128GB, DDR4 5333(OC)

Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III


* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Hình ảnh
1 x DisplayPort 1.4**
1 x HDMI 2.0

* Graphics specifications may vary between CPU types.


"** For Intel® 11th Core™ i5/ i7/ i9 processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update.


Please refer to www.intel.com for any update. "


*** For Intel® 11th Core™ i5/ i7/ i9 processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.


**** VGA resolution support depends on processors' or graphic cards' resolution.

Khe cắm mở rộng
3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4)

Intel® 11th &10th Gen Processors
3 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s)
- Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot
* Supports PCIe bandwidth bifurcation for RAID on CPU function.

Ổ cứng hỗ trợ
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.


Intel® Z590 Chipset


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**


6 x SATA 6Gb/s ports


Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.


To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.


*When M.2_2 is operating in SATA device, SATA6G_2 will be disabled.
**When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.

LAN 1 x Intel® I225-V 2.5Gb
