Giới thiệu Bảng Mạch Bảo Vệ Pin Lithium 12v 100a 4s Bms Li-Ion Lifepo4 Life Lmo

#12V #100A #4S #BMS #Li-ion #LiFePO4 #LiFe #LMO #Lithium #Battery #Protection #Circuit #Board

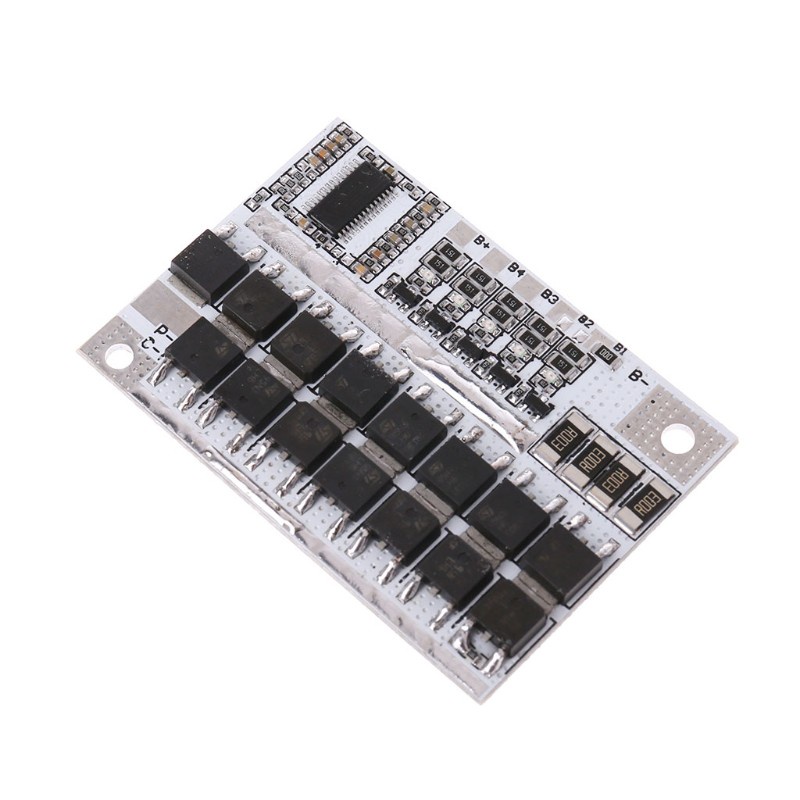

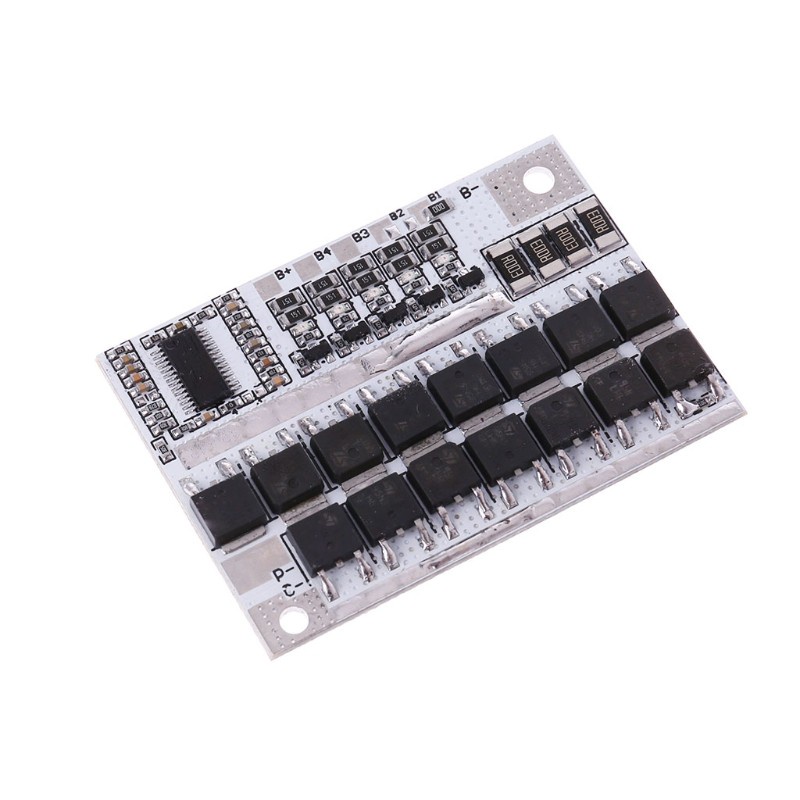

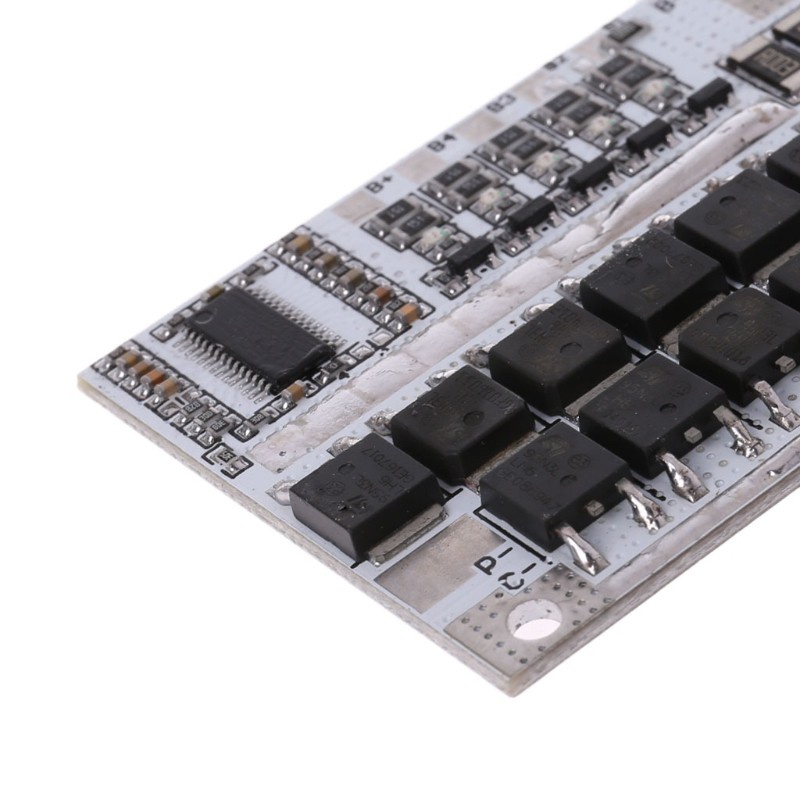

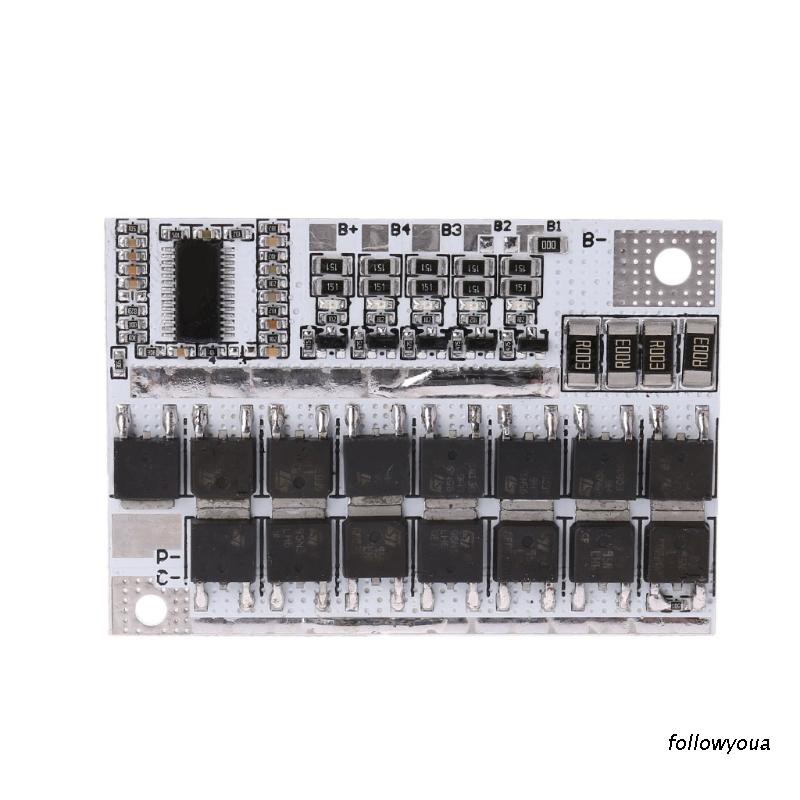

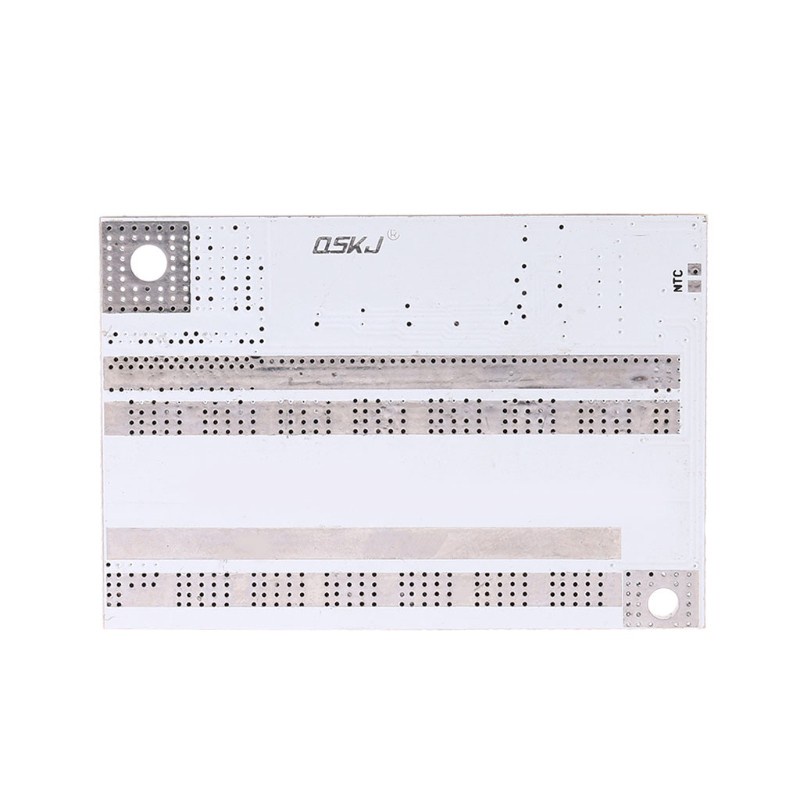

12V 100A 4S BMS Li-ion LiFePO4 LiFe LMO Lithium Battery Protection Circuit Board
FOR LiFePo4 Protect Parameter(3.2V)
Single cell battery overcharge protect voltage:3.61-3.69 V
Single cell battery overcharge protect recover voltage:3.61-3.69 V
Overcharge protect delay:1.5-2.5S
Single cell battery over-discharge protect voltage:2.27-2.43 V
Single cell battery over-discharge protect recover voltage:2.45-2.65 V
Overcharge protect Current:100A
Over-discharge protect Current:100A
Over-discharge protect delay:0.5-1.5S
Temperature protect:Yes
Disconnect protect:Yes
Shortage protect:Yes
Shortage delay:100-600 uS
Shortage protect recover:Disconnected
Charging Current:60A
Current Balance:Yes
Ampere balance (Current):50MA
Voltage alance accuracy:3.355-3.455 V

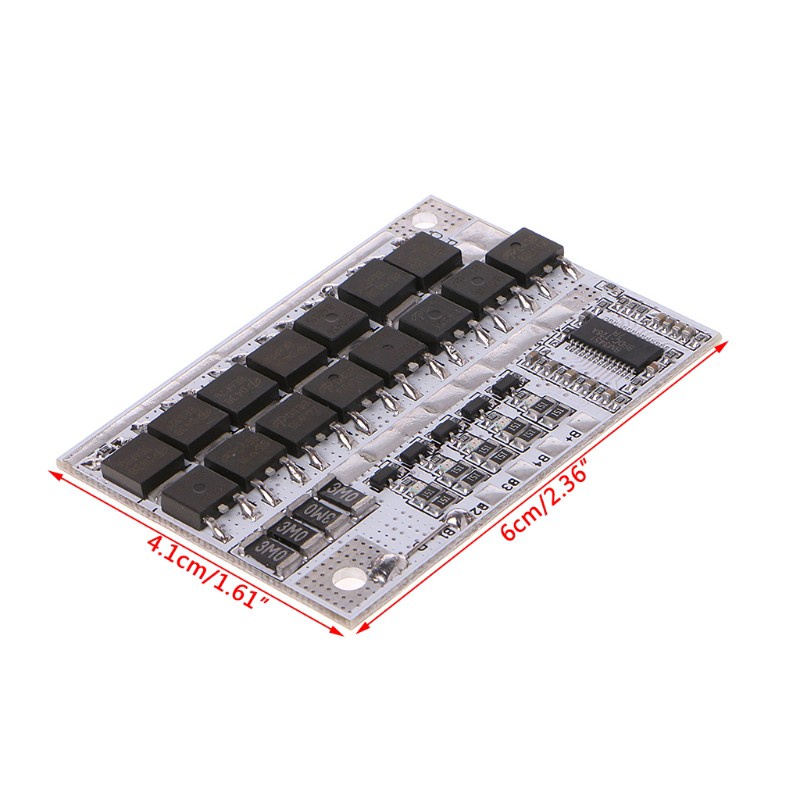

Size: 6*4.1cm/2.36*1.61inch
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x module
