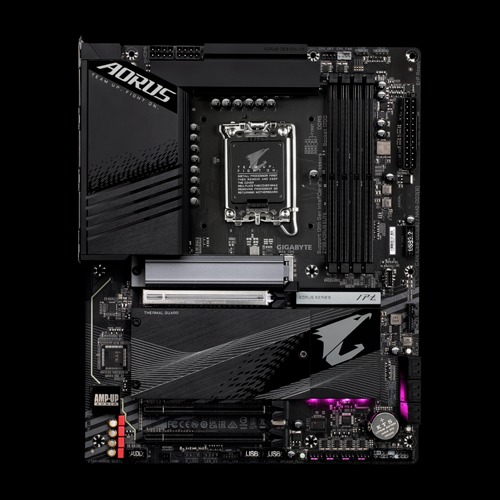

Giới thiệu Mainboard Gigabyte Z790 AORUS ELITE Socket LGA1700 - Hàng Chính Hãng

• CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  2. L3 cache varies with CPU
  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel Z790 Express Chipset
• Bộ nhớ
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
• Card đồ họa tích hợpIntegrated Graphics Processor-Intel HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
     * Support for DisplayPort 1.2 version and HDCP 2.3
  (Graphics specifications may vary depending on CPU support.)
• Âm thanh
  1. Realtek Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
• LAN
  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Khe cắm mở rộngCPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  Chipset:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
• Giao diện lưu trữCPU:
  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• USBChipset:
  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 4 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C header, with USB 3.2 Gen 2 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 2 x Thunderbolt add-in card connectors
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x reset button
  19. 1 x Q-Flash Plus button
  20. 1 x Clear CMOS button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper

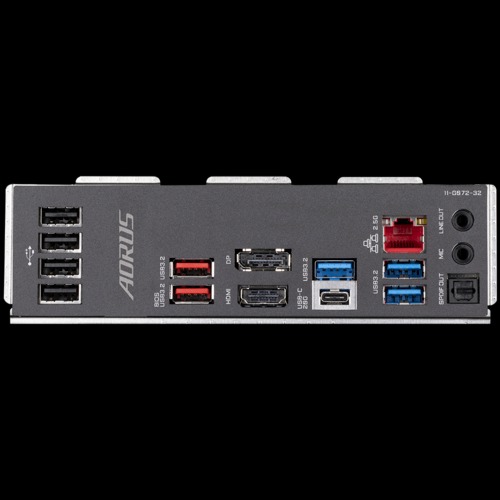

• Kết nối bảng phía sau
  1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red)
  3. 3 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 1 x HDMI 2.0 port
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 2 x audio jacks
• Điều khiển I/O
  1. iTE I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for GIGABYTE Control Center (GCC)
     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
• Gói phần mềm
  1. Norton Internet Security (OEM version)
  2. LAN bandwidth management software
• Hệ điều hành
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Hệ số khuôn
  1. ATX Form Factor; 30.5cm x 24.4cm
