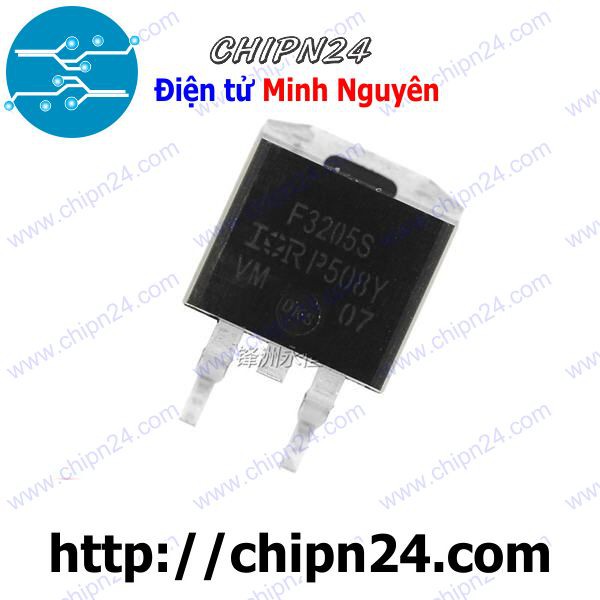

Giới thiệu [2 CON] Mosfet Dán IRF3205 TO-263 110A 55V Kênh N (SMD Dán) (IRF3205S F3205S 3205)

MOSFET Dán IRF3205 IRF3205S TO-263 55V/110A SMD (Kênh N)

Thông số kỹ thuật:

FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 55V
Current - Continuous Drain (Id) @ 25°C 110A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 8 mOhm @ 62A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 146nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3247pF @ 25V
FET Feature -
Power Dissipation (Max) 200W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package D2PAK
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB


Datasheet:
https://www.infineon.com/dgdl/irf3205spbf.pdf?fileId=5546d462533600a4015355defac9190c
