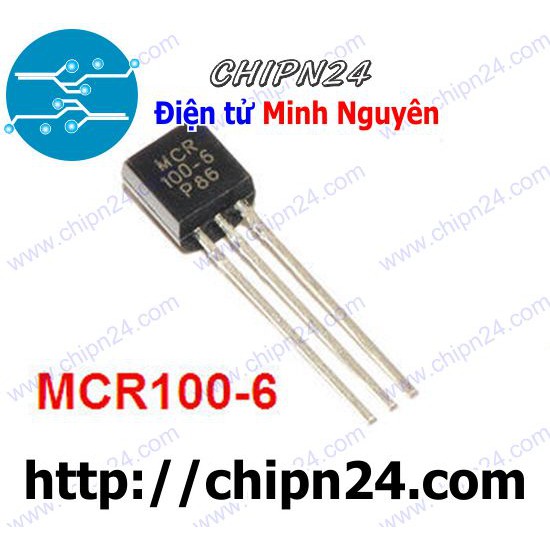

Giới thiệu [10 CON] Triac SCR MCR100-6 TO-92 0.8A 400V (MCR100)

MCR100-6 TO92 0.8A 400V
>>Datasheet MCR100<<

Thông số kỹ thuật:

Datasheets MCR100 Series
Product Photos TO-92-3
PCN Design/Specification
Standard Package ?
Category Discrete Semiconductor Products
Family SCRs - Single
Series -
Packaging ?
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Max) 800mV
Current - Gate Trigger (Igt) (Max) 200µA
Voltage - On State (Vtm) (Max) 1.7V
Current - On State (It (AV)) (Max) -
Current - On State (It (RMS)) (Max) 800mA
Current - Hold (Ih) (Max) 5mA
Current - Off State (Max) 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 10A @ 60Hz
SCR Type Sensitive Gate
Operating Temperature -40°C ~ 110°C
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package TO-92-3
Catalog Page
Other Names MCR100-6RLGOS
MCR100-6RLGOS-ND
MCR100-6RLGOSTR
MCR1006RLG
