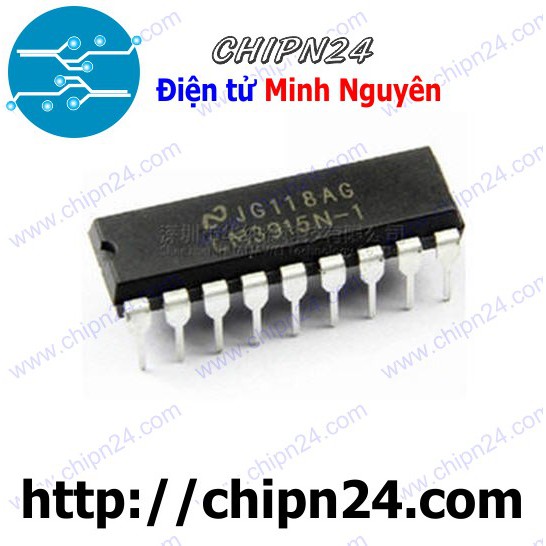

Giới thiệu [1 CON] IC LM3915 DIP-18 (LM3915N-1 3915)

IC LM3915 LM3915N DIP-18

LM3915 Dot/Bar Display Driver

• 3 dB/step, 30 dB Range
• Drives LEDs, LCDs, or Vacuum Fluorescents
• Bar or Dot Display Mode Externally Selectable by User
• Expandable to Displays of 90 dB
• Internal Voltage Reference from 1.2V to 12V
• Operates with Single Supply of 3V to 25V
• Inputs Operate Down to Ground
• Output Current Programmable from 1 mA to 30 mA
• Input Withstands ±35V without Damage or False Outputs
• Outputs are Current Regulated, Open Collectors
• Directly Drives TTL or CMOS
• The Internal 10-step Divider is Floating and can be Referenced to a Wide Range of Voltages
The LM3915 is Rated for Operation from 0°C to +70°C. The LM3915N-1 is Available in an 18-lead PDIP Package.

Datasheet:
https://tronixstuff.com/wp-content/uploads/2013/12/LM3915-data-sheet.pdf
